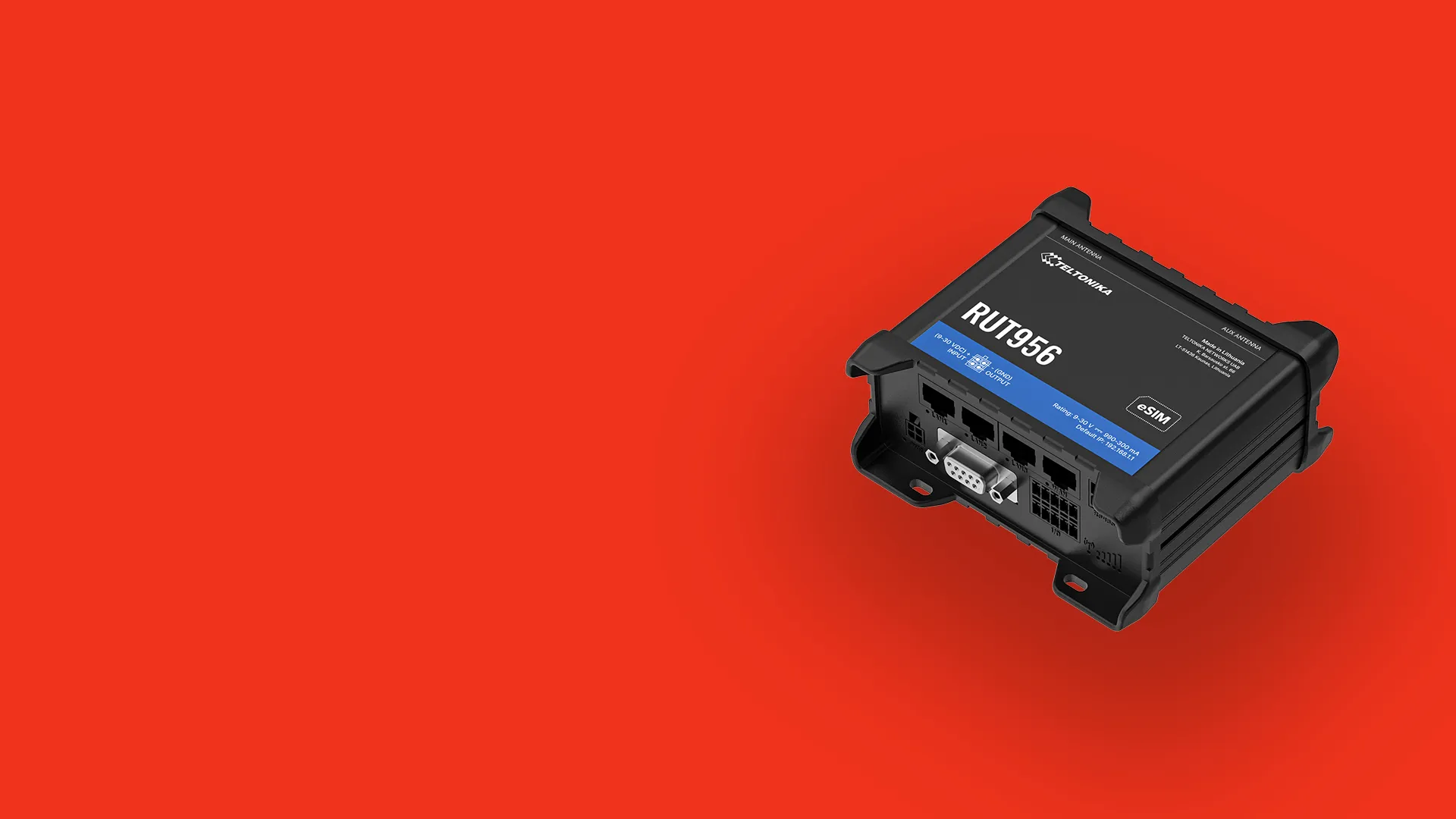

Teltonika RUT956

Name: Teltonika RUT956
Brand: Teltonika

Industrial 4G Router with RS232/RS485 and GPS

RUT956

The Teltonika RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

RUT956 Key Features

The RUT956 is an industrial cellular router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Supporting 4G LTE Cat 4, 3G, and 2G connectivity with dual SIM support and auto-failover, along with comprehensive interfaces including Ethernet, RS232, RS485, and multiple I/Os, the RUT956 is the ideal solution for remote connectivity and IoT deployments. Serial communication interfaces enable integrating diverse devices while advanced RutOS software facilitates equipment control, automation, and event notifications.

4G LTE CONNECTIVITY

Cat 4 performance with 3G and 2G fallback for reliable coverage

DUAL SIM & ESIM™

Backward compatible with 4G LTE Cat 4

GNSS & SERIAL I/O

GPS positioning and versatile I/O for integration

FUTURE-PROOFING

Ethernet, RS232, RS485, & multiple I/Os

Vertical pattern of small gray dots on a white background, denser at the left fading towards the right.

Description

The Teltonika RUT956 is a 4G LTE Cat 4 industrial router with dual SIM, RS232, RS485, GNSS, and a full suite of digital and analogue I/O. It combines cellular failover, serial device integration, and precise location tracking in a compact aluminium enclosure rated for -40 to +75 °C.

Key Features:
• 4G LTE Cat 4 – 150 Mbps down / 50 Mbps up, 3G and 2G fallback
• Dual Mini SIM (2FF) + integrated eSIM with configurable auto-failover
• RS232 (DB9) and RS485 serial interfaces for Modbus RTU, DNP3, DLMS/COSEM, and NTRIP
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS with geofencing support
• 4 x digital/analogue I/O: dry input, isolated input, analogue 4-20 mA input, relay output
• 4 x RJ45 Ethernet (1 x WAN, 3 x LAN), 10/100 Mbps
• Wi-Fi 4 (802.11b/g/n) access point and station modes, up to 100 clients
• RutOS with OpenVPN, WireGuard, IPsec, Modbus TCP/RTU, MQTT, OPC UA, BACnet
• Teltonika RMS compatible – remote monitoring, FOTA, configuration management
• DIN rail, wall mount or flat surface mounting (kit required, sold separately)

Available Versions

Hardware Version	Supported Frequencies	Standard Order Code / Package Contains
RUT956 13****Europe, The Middle East, Africa, Korea, ThailandeSIM	4G (LTE-FDD): B1, B3, B5, B7, B8, B204G (LTE-TDD): B403G: B1, B5, B82G: B3, B8	RUT956130300 / Standard package with power cable (4-way screw terminal)RUT956130200 / Mass packing code
RUT956 23****Europe, The Middle East, Africa, Korea, ThailandeSIM	4G (LTE-FDD): B1, B3, B7, B8, B20, B28A4G (LTE-TDD): B38, B40, B413G: B1, B82G: B3, B8	RUT95623B600 / Standard package with EU PSURUT956230100 / Standard package with UK PSURUT956230200 / Mass packing code
RUT956 43****GlobaleSIM	4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B284G (LTE-TDD): B38, B39, B40, B413G: B1, B2, B4, B5, B6, B8, B192G: B2, B3, B5, B8	RUT956430000 / Standard package with EU PSURUT956430200 / Mass packing code
RUT956 73****South America, Australia, New Zealand, TaiwaneSIM	4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B284G (LTE-TDD): B403G: B1, B2, B4, B5, B82G: B2, B3, B5, B8	RUT956730700 / Standard package with AU PSURUT956730200 / Mass packing code
RUT956 A3****North AmericaeSIM	4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B713G: B2, B4, B5	RUT956A30A00 / Standard package with US PSURUT956A30200 / Mass packing code
RUT956 93****JapaneSIM	4G (LTE-FDD): B1, B3, B8, B18, B19, B264G (LTE-TDD): B413G: B1, B6, B8, B19	RUT956930C00 / Standard package with JP PSU
RUT956 1*****Europe, The Middle East, Africa, Korea, Thailand	4G (LTE-FDD): B1, B3, B5, B7, B8, B204G (LTE-TDD): B403G: B1, B5, B82G: B3, B8	RUT956100000 / Standard package with EU PSURUT956100100 / Standard package with UK PSURUT956100300 / Standard package with power cable (4-way screw terminal)RUT956101000 / Standard package without PSURUT956100200 / Mass packing code
RUT956 2*****Europe, The Middle East, Africa, Korea, Thailand	4G (LTE-FDD): B1, B3, B7, B8, B20, B28A4G (LTE-TDD): B38, B40, B413G: B1, B82G: B3, B8	RUT956200000 / Standard package with EU PSURUT956200100 / Standard package with UK PSURUT956200500 / Standard package with Universal PSURUT956200200 / Mass packing code
RUT956 4*****Global	4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B284G (LTE-TDD): B38, B39, B40, B413G: B1, B2, B4, B5, B6, B8, B192G: B2, B3, B5, B8	RUT956400V00 / Standard package with EU PSURUT956400500 / Standard package with Universal PSURUT956400200 / Mass packing code
RUT956 7*****South America, Australia, New Zealand	4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B284G (LTE-TDD): B403G: B1, B2, B4, B5, B82G: B2, B3, B5, B8	RUT956700700 / Standard package with AU PSURUT956700000 / Standard package with EU PSURUT956700500 / Standard package with Universal PSURUT956700A00 / Standard package with US PSURUT956701000 / Standard package without PSURUT956700200 / Mass packing code
RUT956 9*****Japan	4G (LTE-FDD): B1, B3, B8, B18, B19, B264G (LTE-TDD): B413G: B1, B6, B8, B19	RUT956900C00 / Standard package with JP PSU
RUT956 A*****North America	4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B713G: B2, B4, B5	RUT956A00A00 / Standard package with US PSURUT956A00200 / Mass packing code
RUT956 200505Thailand	4G (LTE-FDD): B1, B3, B7, B8, B204G (LTE-TDD): B38, B403G: B1, B82G: B3, B8	RUT956200505 / Standard package with Universal PSU
RUT956 400505Thailand	4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B284G (LTE-TDD): B38, B40, B413G: B1, B5, B82G: B3, B8	RUT956400505 / Standard package with Universal PSU
